FRONT DOOR WINDOW FRAME MOULDING > INSTALLATION

for Preparation Click here



1. INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING

HINT:
When installing the front door rear window frame moulding, heat the vehicle body and front door rear window frame moulding using a heat light.

Heating Temperature
Item
Temperature
Vehicle Body
40 to 60°C (104 to 140°F)
Moulding
20 to 30°C (68 to 86°F)

NOTICE:
Do not heat the vehicle body or front door rear window frame moulding excessively.

  1. Clean the vehicle body surface.

    1. Using a heat light, heat the vehicle body surface.

    2. Remove the double-sided tape from the vehicle body.

    3. Wipe off any tape adhesive residue with cleaner.



  1. Clean the front door rear window frame moulding (if reusing the front door rear window frame moulding).

    1. Using a heat light, heat the front door rear window frame moulding.

    2. Remove the double-sided tape from the front door rear window frame moulding.

    3. Wipe off any tape adhesive residue with cleaner.

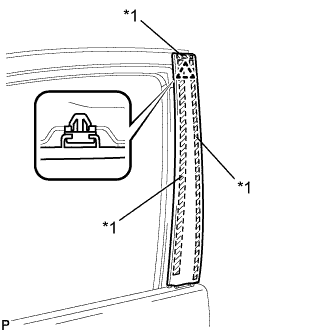

    4. B229340E01
    5. Apply new double-sided tape to the front door rear window frame moulding.

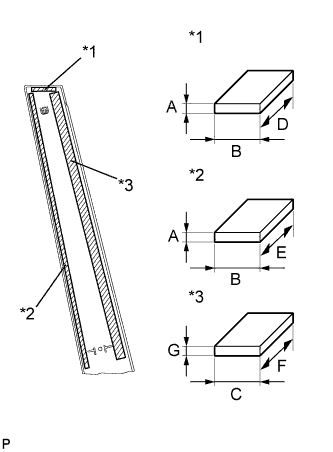

      Text in Illustration
      *1
      Double-sided Tape (A)
      *2
      Double-sided Tape (B)
      *3
      Double-sided Tape (C)
      Item
      Dimension
      A
      0.8 mm (0.0315 in.)
      B
      5.0 mm (0.197 in.)
      C
      13.0 mm (0.512 in.)
      D
      35.0 mm (1.37 in.)
      E
      420.0 mm (1.38 ft.)
      F
      410.0 mm (1.35 ft.)
      G
      1.2 mm (0.0472 in.)



    B229338E01
  1. Install the front door rear window frame moulding.
    Text in Illustration
    *1
    Double-sided Tape

    1. Using a heat light, heat the vehicle body and front door rear window frame moulding.

    2. Remove the release paper from the face of the front door rear window frame moulding.

      HINT:
      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Install the front door rear window frame moulding with the clip.



2. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

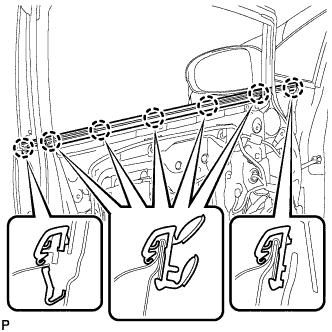

    B229331
  1. Engage the 7 claws to install the front door belt moulding assembly.



3. INSTALL FRONT DOOR GLASS RUN


    B228703
  1. Install the front door glass run.



4. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
  1. Connect the cable to the negative (-) battery terminal.

  1. Connect the power window regulator master switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.

    1. w/ Navigation System for HDD:

      NOTICE:
      After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

  1. Disconnect the cable from the negative (-) battery terminal and power window regulator master switch assembly.

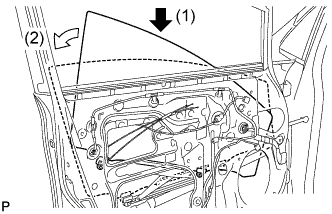

    B228695E01
  1. Insert the front door glass sub-assembly into the front door panel along the front door glass run as indicated by the arrows, in the order shown in the illustration.



    B228693
  1. Install the front door glass sub-assembly with the 2 bolts.

    Torque:
    8.0 N*m{ 82 kgf*cm , 71 in.*lbf }



    B228691
  1. Install the grommet.

  1. Connect the cable to the negative (-) battery terminal.

    NOTICE:
    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



5. INSTALL FRONT DOOR SERVICE HOLE COVER
  1. Apply butyl tape to the front door panel.

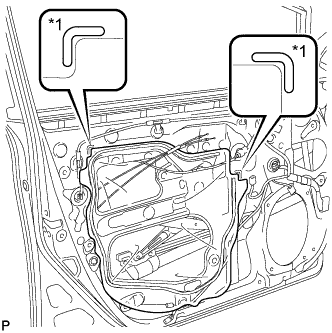

    B228689E01
  1. Pass the front door lock remote control cable assembly and front door inside locking cable assembly through a new front door service hole cover.

  1. Attach the front door service hole cover according to the reference points on the front door panel.
    Text in Illustration
    *1
    Reference Point

    NOTICE:
    Securely install the front door service hole cover preventing wrinkles and air bubbles.



6. INSTALL FRONT DOOR TRIM BRACKET


    B228685
  1. Install the front door trim bracket with the 2 screws.



7. INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY

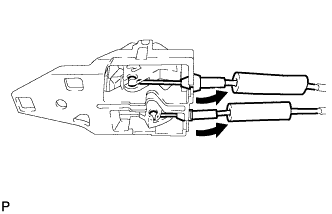

    B228676
  1. Connect the front door lock remote control cable assembly and front door inside locking cable assembly to the front door inside handle.



    B228673
  1. Engage the 2 claws and install the front door inside handle sub-assembly to the front door trim board sub-assembly.



8. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

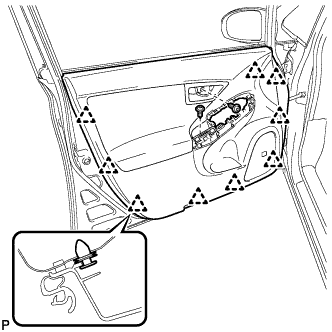

    B228671
  1. Engage the 9 clips and install the front door trim board sub-assembly.

  1. Install the 2 screws.

  1. Remove the 2 pieces of protective tape.



9. INSTALL COURTESY LIGHT ASSEMBLY
  1. Connect the connector.

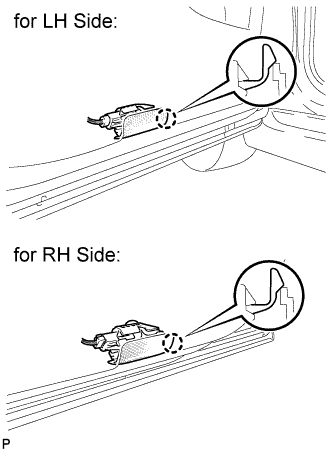

    E189696E01
  1. Engage the claw to install the courtesy light assembly.



10. INSTALL DOOR ARMREST COVER


    B228665
  1. Install the door armrest cover.



11. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)


    B228663
  1. Connect the connector.

  1. Engage the 7 claws and 3 guides, and install the power window regulator master switch assembly with front door armrest base panel.



12. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
  1. Connect the connector.



    B232008
  1. Engage the 7 claws and 3 guides, and install the power window regulator switch assembly with front door armrest base panel.



13. INSTALL ASSIST GRIP COVER


    B228660

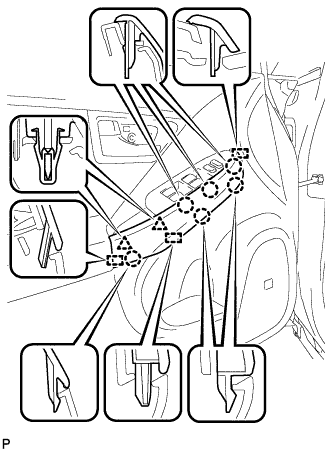

  1. Engage the 6 claws, 2 clips and 3 guides, and install the assist grip cover.



14. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

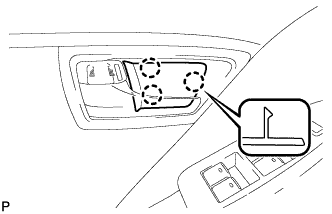

    B228657
  1. Engage the 3 claws and install the front door inside handle bezel plug.



15. INSTALL REAR NO. 3 FLOOR BOARD


    B227791
  1. Engage the 2 guides to install the rear No. 3 floor board.



16. INSTALL REAR DECK FLOOR BOX
  1. Install the rear deck floor box.



17. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01
  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.



18. INITIALIZE POWER WINDOW CONTROL SYSTEM
(Click here)
