OUTER REAR VIEW MIRROR > REMOVAL

for Preparation Click here

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work (Click here).

1. Disengage the 2 guides <A> as shown in the illustration.


2. Disengage the 3 guides <B> and remove the rear No. 2 floor board.


1. Remove the rear deck floor box.


1. Disengage the 2 guides and remove the rear No. 3 floor board.


NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

1. Using a moulding remover, disengage the 3 claws and remove the front door inside handle bezel plug.


1. Using a moulding remover, disengage the 6 claws, 2 clips and 3 guides, and remove the assist grip cover.


1. Disengage the 7 claws and 3 guides.


2. Disconnect the connector and remove the power window regulator master switch assembly with front door armrest base panel.


1. Disengage the 7 claws and 3 guides.


2. Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.


1. Remove the door armrest cover.


1. Using a moulding remover, disengage the claw.


2. Disconnect the connector and remove the courtesy light assembly.


1. Disconnect the front door lock remote control cable and front door inside locking cable, and remove the front door inside handle sub-assembly.


1. Put protective tape around the front door panel.


   Text in Illustration

   *1	Protective Tape

2. Remove the 2 screws.


3. Using a clip remover, disengage the 9 clips.


4. Pull out the front door trim board sub-assembly in the direction indicated by the arrow in the illustration.


5. Raise the front door trim board sub-assembly and remove the front door trim board sub-assembly together with the front door inner glass weatherstrip.


6. Disengage the 2 claws and disconnect the front door inside handle sub-assembly.

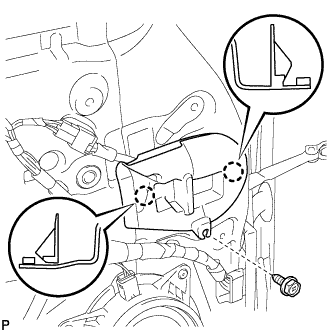

1. Remove the screw.


2. Disengage the 2 claws and remove the outer mirror protector.

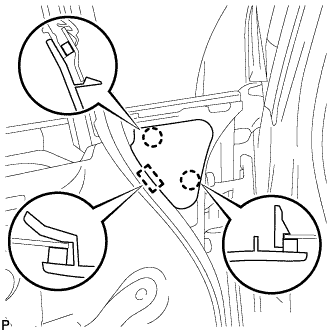

1. Disengage the 2 claws and guide, remove the outer mirror install hole cover.

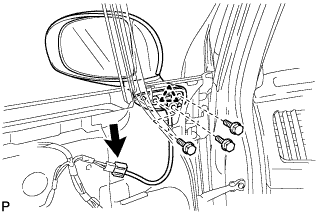

1. Disconnect the connector.


2. Remove the 3 bolts.


3. Disengage the clip and remove the outer rear view mirror assembly.

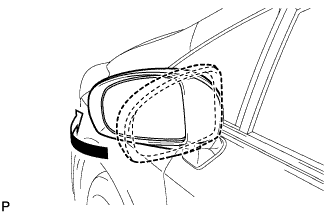

1. Push the outside part of the outer mirror assembly and tilt it as show in the illustration.


2. Push the upper part of the mirror surface and tilt it.


   Text in Illustration

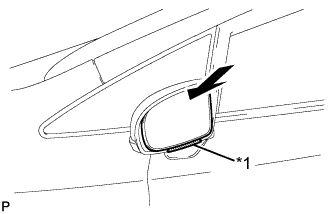

   *1	Protruding Part

3. Apply protective tape as shown in the illustration.


4. Using a moulding remover, disengage the 2 claws at the lower part of the outer rear view mirror, and separate the outer rear view mirror glass.


5. w/o Mirror Heater:

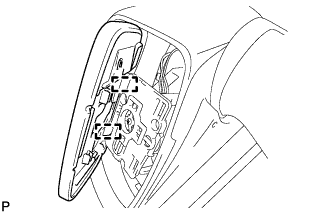

   1. Disengage the 2 guides at the upper part of the outer mirror


   2. Remove the outer mirror.


6. w/ Mirror Heater:

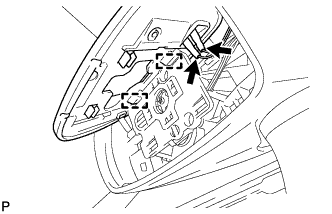

   1. Disengage the 2 guides at the upper part of the outer mirror.


   2. Disconnect the 2 connectors and remove the outer mirror.

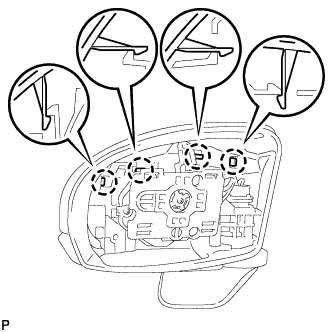

1. Disengage the 4 claws.

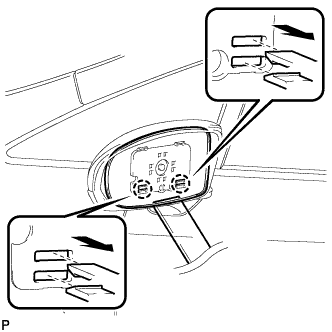

2. Disengage the 3 claws and remove the outer mirror cover as shown in the illustration.
