FRONT SEAT OUTER BELT ASSEMBLY > REMOVAL

for Preparation Click here



1. PRECAUTION (w/ Navigation System for HDD)

NOTICE:
After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.



2. REMOVE REAR NO. 2 FLOOR BOARD


    B227787E01

  1. Disengage the 2 guides <A> as shown in the illustration.

  1. Disengage the 3 guides <B> and remove the rear No. 2 floor board.



3. REMOVE REAR DECK FLOOR BOX

  1. Remove the rear deck floor box.



4. REMOVE REAR NO. 3 FLOOR BOARD


    B227791

  1. Disengage the 2 guides and remove the rear No. 3 floor board.



5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



6. REMOVE FRONT DOOR SCUFF PLATE


    B227761

  1. Disengage the 10 claws and remove the front door scuff plate LH.



7. REMOVE REAR DOOR SCUFF PLATE


    B227766

  1. Disengage the 7 claws and remove the rear door scuff plate LH.



8. REMOVE LAP BELT OUTER ANCHOR COVER


    B221487

  1. Disengage the 3 claws and remove the lap belt outer anchor cover.



9. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY


    B221489

  1. Remove the bolt and disconnect the floor end of the front seat outer belt assembly.



10. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH


    B227768

  1. Remove the front door opening trim weatherstrip LH.



11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH


    B227770

  1. Remove the rear door opening trim weatherstrip LH.



12. REMOVE CENTER PILLAR LOWER GARNISH


    B227782

  1. Disengage the 2 claws and 2 clips, and remove the center pillar lower garnish LH.



13. REMOVE CENTER PILLAR GARNISH


    B227784

  1. Remove the screw.

  1. Using a clip remover, disengage the clip.

  1. Pass the floor anchor of the front seat outer seat belt assembly LH through the center pillar garnish LH and remove the center pillar garnish LH.



14. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

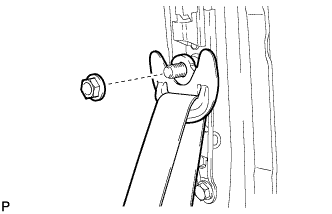

    B221491

  1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

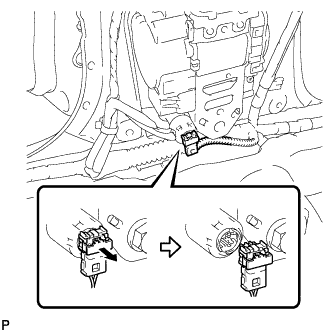

    B221520

  1. Using a screwdriver, pull out the locking button in the direction shown by the arrow in the illustration to release the lock, and disconnect the pretensioner connector as shown in the illustration.

    HINT:
    Tape the screwdriver tip before use.

  1. Disconnect each connector.

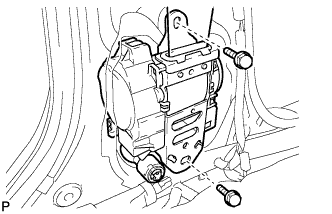

    B218234

  1. Remove the 2 bolts and front seat outer belt assembly.



15. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

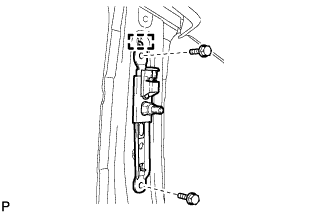

    B221493

  1. Remove the 2 bolts.

  1. Disengage the guide and remove the front shoulder belt anchor adjuster assembly.
