LIGHTING SYSTEM > Headlight Leveling ECU Power Source Circuit |
1.READ VALUE USING INTELLIGENT TESTER |
Connect the intelligent tester to the DLC3.
Turn the power switch on (IG).
Turn the intelligent tester on.
Enter the following menus: Body / HL Auto Leveling / Data List.
Read the display on the intelligent tester.
Tester Display | Measurement Item/Range | Normal Condition | Diagnostic Note |
+B | IG power supply voltage value / 0 to 20 V | 11 to 14 V | - |
|
| ||||
OK | ||
![]() | ||
|
2.CHECK HARNESS AND CONNECTOR (BATTERY - HEADLIGHT LEVELING ECU ASSEMBLY) |
![]() |
Disconnect the A48 headlight leveling ECU assembly connector.
Measure the voltage according to the value(s) in the table below.
Tester Connection | Switch Condition | Specified Condition |
A48-1 (IG) - Body ground | Power switch on (IG) | 11 to 14 V |
A48-1 (IG) - Body ground | Power switch off | Below 1 V |

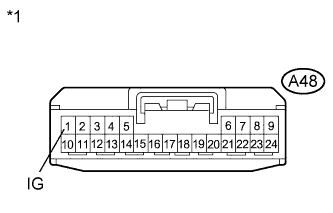

*1 | Front view of wire harness connector (to Headlight Leveling ECU assembly) |
|
| ||||
OK | |
![]() |
3.CHECK HARNESS AND CONNECTOR (HEADLIGHT LEVELING ECU ASSEMBLY - BODY GROUND) |
![]() |
Measure the resistance according to the value(s) in the table below.
Tester Connection | Condition | Specified Condition |
A48-9 (E1) - Body ground | Always | Below 1 Ω |

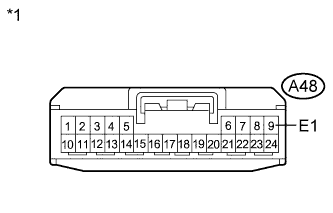

*1 | Front view of wire harness connector (to Headlight Leveling ECU assembly) |
|
| ||||
OK | ||
![]() | ||
|
