DESCRIPTION

The main body ECU (multiplex network body ECU) receives the following switch information:
  1. Light control switch position is off, tail, head or AUTO
  2. Dimmer switch position is high, low or high flash (pass)
  3. Front fog light switch position is on or off
  4. Rear fog light switch position is on or off

WIRING DIAGRAM


E186491E03

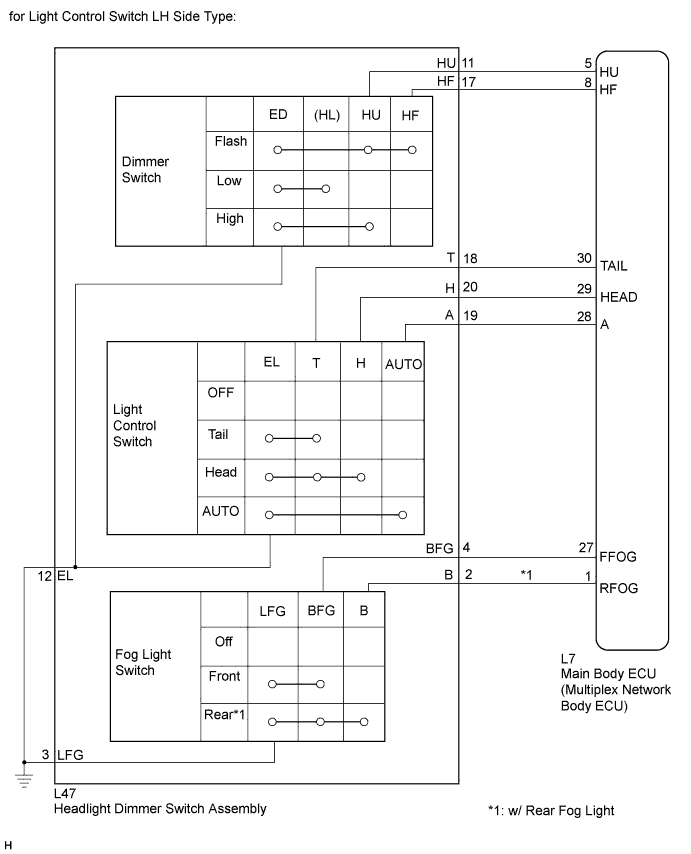

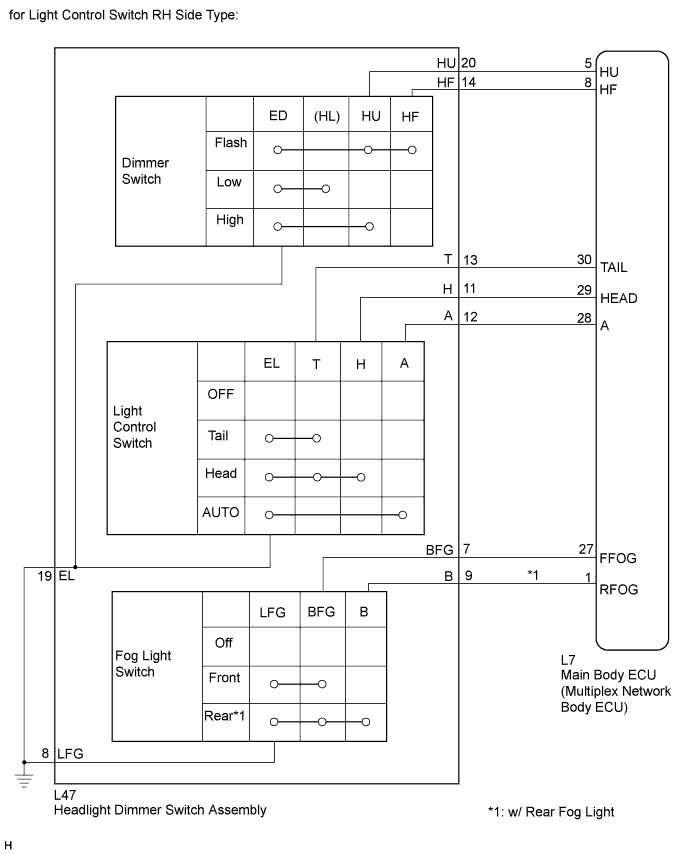

E191585E01


INSPECTION PROCEDURE

1.READ VALUE USING INTELLIGENT TESTER
  1. Connect the intelligent tester to the DLC3.

  1. Turn the power switch on (IG).

  1. Turn the intelligent tester on.

  1. Enter the following menus: Body / Main Body / Data List.

  1. Read the display on the intelligent tester.

    Main Body
    Tester Display
    Measurement Item/Range
    Normal Condition
    Diagnostic Note
    Dimmer Hi SW
    Dimmer switch high position signal/ON or OFF
    ON: Dimmer switch in high or high flash (pass) position
    OFF: Dimmer switch in low position
    -
    Passing Light SW
    Dimmer switch high flash (pass) position signal/ON or OFF
    ON: Dimmer switch in high flash (pass) position
    OFF: Dimmer switch not in high flash (pass) position
    -
    Front Fog Light SW
    Front fog light switch signal/ON or OFF
    ON: Front fog light switch on
    OFF: Front fog light switch off
    -
    Rear Fog Light SW
    Rear fog light switch signal/ON or OFF
    ON: Rear fog light switch on
    OFF: Rear fog light switch off
    -
    Light Auto SW
    Light control switch auto position signal/ON or OFF
    ON: Light control switch in auto position
    OFF: Light control switch not in auto position
    -
    Headlight SW
    Light control switch head position signal/ON or OFF
    ON: Light control switch in head position
    OFF: Light control switch not in head position
    -
    Taillight SW
    Light control switch tail position signal/ON or OFF
    ON: Light control switch in tail or head position
    OFF: Light control switch in neither tail nor head position
    -

    OK:
    Normal conditions listed above are displayed.



NG
Go to step 2
OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE (Click here)

2.INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY

HINT:
Inspect the items that did not change as a result of monitoring the Data List.



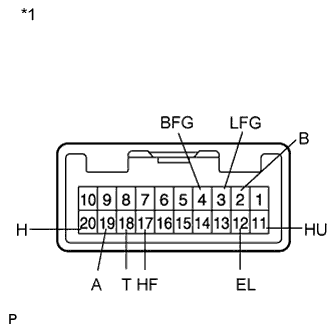

    B162671E33
  1. for Light Control Switch LH Side Type

    1. Remove the headlight dimmer switch assembly (Click here).

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance:
      Light Control Switch
      Tester Connection
      Switch Condition
      Specified Condition
      12 (EL) - 18 (T)
      Light control switch off
      10 kΩ or higher
      18 (T) - 19 (A)
      Light control switch off
      10 kΩ or higher
      19 (A) - 20 (H)
      Light control switch off
      10 kΩ or higher
      12 (EL) - 18 (T)
      Light control switch in tail position
      Below 1 Ω
      12 (EL) - 18 (T)
      Light control switch in head position
      Below 1 Ω
      18 (T) - 20 (H)
      Light control switch in head position
      Below 1 Ω
      12 (EL) - 19 (A)
      Light control switch in AUTO position
      Below 1 Ω
      Dimmer Switch
      Tester Connection
      Switch Condition
      Specified Condition
      11 (HU) - 12 (EL)
      Dimmer switch in low position
      10 kΩ or higher
      11 (HU) - 12 (EL)
      Dimmer switch in high position
      Below 1 Ω
      12 (EL) - 17 (HF)
      Dimmer switch in high flash position
      Below 1 Ω
      Front Fog Light Switch
      Tester Connection
      Switch Condition
      Specified Condition
      3 (LFG) - 4 (BFG)
      Fog light switch off
      10 kΩ or higher
      3 (LFG) - 4 (BFG)
      Fog light switch on
      Below 1 Ω
      Rear Fog Light Switch
      Tester Connection
      Switch Condition
      Specified Condition
      3 (LFG) - 2 (B)
      Rear fog light switch off
      10 kΩ or higher
      3 (LFG) - 2 (B)
      Rear fog light switch on
      Below 1 Ω

      OK:
      Headlight dimmer switch assembly is normal.

      Text in Illustration
      *1
      Component without harness connected:
      (Headlight Dimmer Switch Assembly)



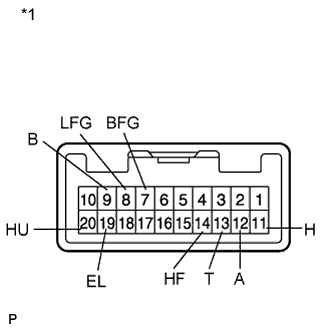

    B162671E34
  1. for Light Control Switch RH Side Type

    1. Remove the headlight dimmer switch assembly (Click here).

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance:
      Light Control Switch
      Tester Connection
      Switch Condition
      Specified Condition
      19 (EL) - 13 (T)
      Light control switch off
      10 kΩ or higher
      13 (T) - 12 (A)
      Light control switch off
      10 kΩ or higher
      12 (A) - 11 (H)
      Light control switch off
      10 kΩ or higher
      19 (EL) - 13 (T)
      Light control switch in tail position
      Below 1 Ω
      19 (EL) - 13 (T)
      Light control switch in head position
      Below 1 Ω
      13 (T) - 11 (H)
      Light control switch in head position
      Below 1 Ω
      19 (EL) - 12 (A)
      Light control switch in AUTO position
      Below 1 Ω
      Dimmer Switch
      Tester Connection
      Switch Condition
      Specified Condition
      20 (HU) - 19 (EL)
      Dimmer switch in low position
      10 kΩ or higher
      20 (HU) - 19 (EL)
      Dimmer switch in high position
      Below 1 Ω
      19 (EL) - 14 (HF)
      Dimmer switch in high flash position
      Below 1 Ω
      Front Fog Light Switch
      Tester Connection
      Switch Condition
      Specified Condition
      8 (LFG) - 7 (BFG)
      Fog light switch off
      10 kΩ or higher
      8 (LFG) - 7 (BFG)
      Fog light switch on
      Below 1 Ω
      Rear Fog Light Switch
      Tester Connection
      Switch Condition
      Specified Condition
      8 (LFG) - 9 (B)
      Rear fog light switch off
      10 kΩ or higher
      8 (LFG) - 9 (B)
      Rear fog light switch on
      Below 1 Ω

      OK:
      Headlight dimmer switch assembly is normal.

      Text in Illustration
      *1
      Component without harness connected:
      (Headlight Dimmer Switch Assembly)



NG
REPLACE HEADLIGHT DIMMER SWITCH ASSEMBLY (Click here)
OK


3.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - HEADLIGHT DIMMER SWITCH ASSEMBLY)
  1. for Light Control Switch LH Side Type

    1. Disconnect the L47 headlight dimmer switch assembly connector.

    2. Disconnect the L7 main body ECU (multiplex network body ECU) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance:
      Tester Connection
      Condition
      Specified Condition
      L47-2 (B) - L7-1 (RFOG)
      Always
      Below 1 Ω
      L47-4 (BFG) - L7-27 (FFOG)
      Always
      Below 1 Ω
      L47-11 (HU) - L7-5 (HU)
      Always
      Below 1 Ω
      L47-17 (HF) - L7-8 (HF)
      Always
      Below 1 Ω
      L47-18 (T) - L7-30 (TAIL)
      Always
      Below 1 Ω
      L47-19 (A) - L7-28 (A)
      Always
      Below 1 Ω
      L47-20 (H) - L7-29 (HEAD)
      Always
      Below 1 Ω
      L47-4 (BFG) - Body ground
      Always
      10 kΩ or higher
      L47-11 (HU) - Body ground
      Always
      10 kΩ or higher
      L47-17 (HF) - Body ground
      Always
      10 kΩ or higher
      L47-18 (T) - Body ground
      Always
      10 kΩ or higher
      L47-19 (A) - Body ground
      Always
      10 kΩ or higher
      L47-20 (H) - Body ground
      Always
      10 kΩ or higher
      L47-12 (EL) - Body ground
      Always
      Below 1 Ω
      L47-3 (LFG) - Body ground
      Always
      Below 1 Ω

  1. for Light Control Switch RH Side Type

    1. Disconnect the L47 headlight dimmer switch assembly connector.

    2. Disconnect the L7 main body ECU (multiplex network body ECU) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance:
      Tester Connection
      Condition
      Specified Condition
      L47-9 (B) - L7-1 (RFOG)
      Always
      Below 1 Ω
      L47-7 (BFG) - L7-27 (FFOG)
      Always
      Below 1 Ω
      L47-20 (HU) - L7-5 (HU)
      Always
      Below 1 Ω
      L47-14 (HF) - L7-8 (HF)
      Always
      Below 1 Ω
      L47-13 (T) - L7-30 (TAIL)
      Always
      Below 1 Ω
      L47-12 (A) - L7-28 (A)
      Always
      Below 1 Ω
      L47-11 (H) - L7-29 (HEAD)
      Always
      Below 1 Ω
      L47-7 (BFG) - Body ground
      Always
      10 kΩ or higher
      L47-20 (HU) - Body ground
      Always
      10 kΩ or higher
      L47-14 (HF) - Body ground
      Always
      10 kΩ or higher
      L47-13 (T) - Body ground
      Always
      10 kΩ or higher
      L47-12 (A) - Body ground
      Always
      10 kΩ or higher
      L47-11 (H) - Body ground
      Always
      10 kΩ or higher
      L47-19 (EL) - Body ground
      Always
      Below 1 Ω
      L47-8 (LFG) - Body ground
      Always
      Below 1 Ω



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) (Click here)
