NAVIGATION SYSTEM (for Navigation Receiver Type) > DTC CHECK / CLEAR

for Preparation Click here

1. Connect the intelligent tester to the DLC3.


2. Turn the power switch on (READY).


3. Turn the intelligent tester on.


4. Enter the following menus: Body / Navigation System / DTC.


5. Check for DTCs, and then write them down.


6. Check the details of the DTC(s) (Click here).


   NOTICE:

   The navigation system outputs DTCs for the following systems. When DTCs other than those in Diagnostic Trouble Code Chart for the navigation system are output, refer to Diagnostic Trouble Code Chart for the relevant systems.

   System	Proceed to
   Intelligent Parking Assist System	Click here

1. Connect the intelligent tester to the DLC3.


2. Turn the power switch on (READY).


3. Turn the intelligent tester on.


4. Enter the following menus: Body / Navigation System / DTC.


5. Clear the DTCs.


HINT:

1. Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

2. If the system cannot enter diagnostic mode, inspect all AVC-LAN communication components and repair or replace problem parts (Click here).

3. After the power switch is turned on (READY), check that the map is displayed before starting diagnostic mode. Otherwise, some items cannot be checked.


1. While pressing and holding the "INFO" switch of the navigation receiver assembly, operate the light control switch: Off → Tail → Off → Tail → Off → Tail → Off.


2. Diagnostic mode starts and the "Service Menu" screen will be displayed. Service inspection starts automatically and the result will be displayed.

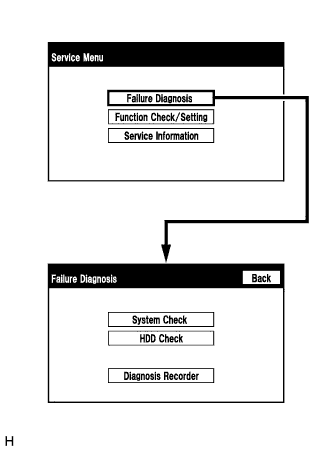

1. The "Failure Diagnosis" screen will be displayed by pressing the "Failure Diagnosis" switch on the "Service Menu" screen.

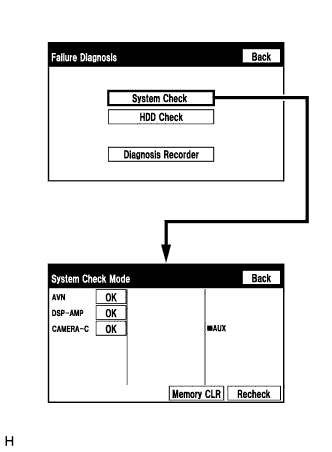

1. The "System Check Mode" screen will be displayed by pressing the "System Check" switch on the "Failure Diagnosis" screen.


HINT:

When "NCON" is displayed for all devices connected using the AVC-LAN, or when all device names are not displayed, check if there is a short circuit in the AVC-LAN or devices connected to the AVC-LAN. Repair or replace parts as necessary (Click here).

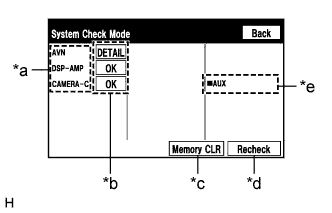

1. System check mode screen description


   Screen Description

   Display	Content
   *a: Device Name List No. 1	Device Name List No. 1 displays some of the devices that make up the navigation system. The names of the components from Device Name List No. 1 are shown in the following table.
   *b: Check Result	Result codes for all devices are displayed.
   *c: Memory Clear	Present and history DTCs and registered connected device names are cleared. Press the "Memory CLR" switch for 3 seconds.
   *d: Recheck	A system check will be performed again after the memory is cleared. The "Recheck" switch will dim during a system check.
   *e: Device Name List No. 2	Device Name List No. 2 displays some of the devices that make up the navigation system. The names of the components from Device Name List No. 2 are shown in the following table.

   *a: Device Name List No. 1 Description

   Name	Component	Connection Method
   AVN	Navigation receiver assembly	-
   DSP-AMP	Stereo component amplifier assembly	Communication line for AVC-LAN
   CAMERA-C	Parking assist ECU	Communication line for AVC-LAN

   *b: Check Result Description

   Result	Meaning	Action
   OK	The device does not respond with a DTC.	-
   DETAIL	The device responds with a DTC.	Look up the DTC in "Unit Check Mode".
   NCON	The device was previously present, but does not respond in diagnostic mode.	- Check power supply wire harness of the device. - Check the AVC-LAN of the device.
   NRES	The device responds in diagnostic mode, but gives no DTC information.	- Check power supply wire harness of the device. - Check the AVC-LAN of the device.

   *e: Device Name List No. 2 Description

   Name	Component	Connection Method
   AUX	No. 1 stereo jack adapter assembly	Vehicle wire harness

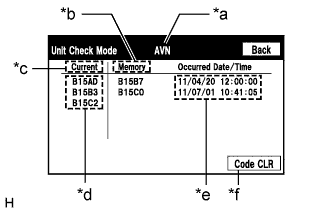

2. Unit check mode screen description


   Screen Description

   Display	Content
   *a: Device name	Target device
   *b: History DTC	Diagnostic memory results and stored DTCs are displayed.
   *c: Current DTC	DTCs output in the service check are displayed.
   *d: DTC	DTC (Diagnostic Trouble Code)
   *e: Timestamp	The time and date of history DTCs are displayed. (The year is displayed in 2-digit format.)
   *f: Diagnosis clear switch	Pushing this switch for 3 seconds clears the diagnostic memory data of the target device. (Both response to diagnostic system check result and the displayed data are cleared.)

   HINT:

   1. This screen is updated once per second.

   2. A maximum of 6 DTCs can be displayed for history and present DTCs.






3. Read the system check result.

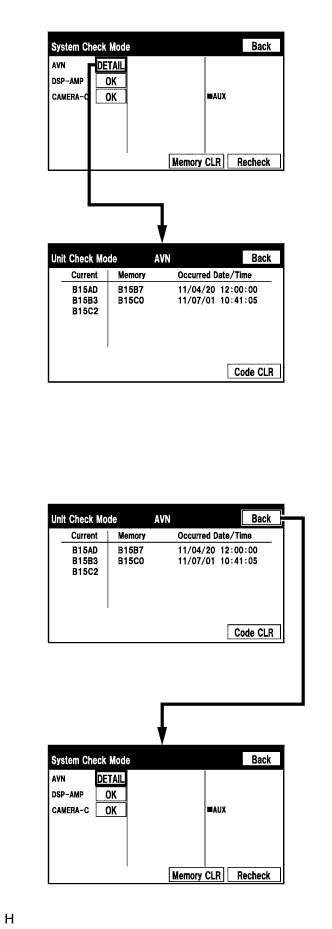

   1. If the check result is "DETAIL", touch the displayed check result to view the results on the "Unit Check Mode" screen and record them.


      NOTICE:

      A maximum of 6 DTCs can be displayed for history and present DTCs on the "Unit check mode" screen. Therefore, when 6 DTCs are displayed, troubleshoot those DTCs first and then check the "Unit check mode" screen again to see if any other DTCs are displayed.

      HINT:

      1. When all results are "OK", this means that no DTCs are present.

      2. When proceeding to view the results of another device, press the "Back" switch to return to the "System Check Mode" screen. Repeat the step above to view the results of other devices.


   2. Check the details of the DTC(s) (Click here).


      NOTICE:

      The navigation system outputs DTCs for the following systems. When DTCs other than those in Diagnostic Trouble Code Chart for the navigation system are output, refer to Diagnostic Trouble Code Chart for the relevant systems.

      System	Proceed to
      Intelligent Parking Assist System	Click here

1. Clear DTCs

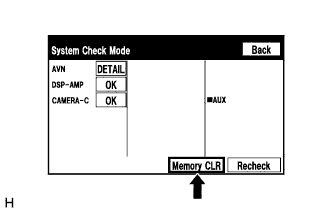

   1. Press the "Memory CLR" switch for 3 seconds.


   2. Confirm that the check results are cleared.


      HINT:

      1. To clear the DTCs for a specific device, clear the DTCs using the "Unit Check Mode" screen.

      2. When clearing the DTCs using the "Unit Check Mode" screen, press the "Code CLR" switch for 3 seconds.






2. Recheck

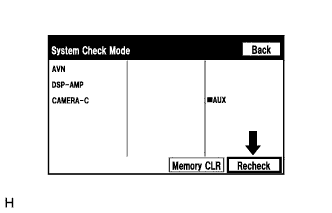

   1. Press the "Recheck" switch.

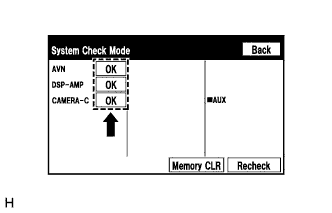

   2. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a code other than "OK" is displayed, troubleshoot again.


      HINT:

      When the DTCs are cleared using the "Unit Check Mode" screen, press the "Back" switch to return to the "System Check Mode" screen and perform this operation.

1. Turn the power switch off.
