BRAKE PEDAL STROKE SENSOR (for LHD) > REMOVAL

for Preparation Click here


NOTICE:
While the battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the battery is connected.



1. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

HINT:
Refer to the procedure up to Remove Brake Pedal Support Assembly (Click here).



2. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

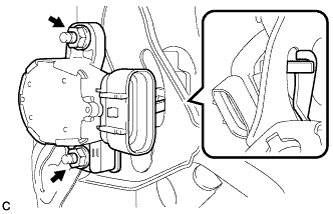

    C208061E01

  1. Remove the 2 nuts and brake pedal stroke sensor assembly.

    NOTICE:
    Do not drop the brake pedal stroke sensor assembly. If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
