RELAY > ON-VEHICLE INSPECTION

for Preparation Click here



1. INSPECT COOLING FAN RELAY


    B016200

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 5
    		Battery voltage is not applied between terminals 1 and 2
    		10 kΩ or higher
    3 - 5
    		Battery voltage is applied between terminals 1 and 2
    		Below 1 Ω

    If the result is not as specified, replace the cooling fan relay.



2. INSPECT NO. 2 COOLING FAN RELAY

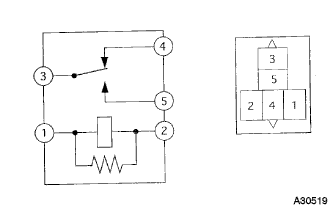

    A030519

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 4
    		Battery voltage is not applied between terminals 1 and 2
    		Below 1 Ω
    3 - 4
    		Battery voltage is applied between terminals 1 and 2
    		10 kΩ or higher
    3 - 5
    		Battery voltage is not applied between terminals 1 and 2
    		10 kΩ or higher
    3 - 5
    		Battery voltage is applied between terminals 1 and 2
    		Below 1 Ω

    If the result is not as specified, replace the cooling fan relay.



3. INSPECT NO. 3 COOLING FAN RELAY


    B016200

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 5
    		Battery voltage is not applied between terminals 1 and 2
    		10 kΩ or higher
    3 - 5
    		Battery voltage is applied between terminals 1 and 2
    		Below 1 Ω

    If the result is not as specified, replace the cooling fan relay.
