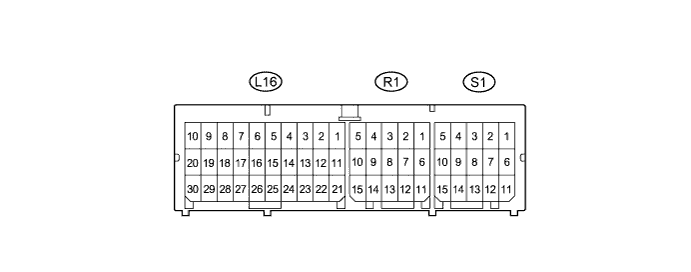

Terminal No.
| Terminal Symbol
| Destination
|
L16-3
| P-
| Front passenger airbag assembly (Front passenger side squib)
|
L16-4
| P+
| Front passenger airbag assembly (Front passenger side squib)
|
L16-5
| D+
| Steering pad (Driver side squib)
|
L16-6
| D-
| Steering pad (Driver side squib)
|
L16-9
| DK+
| Driver side knee airbag assembly (Driver side knee airbag squib)
|
L16-10
| DK-
| Driver side knee airbag assembly (Driver side knee airbag squib)
|
L16-11*
| MSW+
| Airbag cut off switch
|
L16-12*
| MSW-
| Airbag cut off switch
|
L16-13
| CANH
| CAN communication line
|
L16-14
| GSW2
| Power management control ECU
|
L16-17*
| P-AB
| Passenger seat belt warning light assembly (Passenger airbag ON/OFF indicator)
|
L16-21
| IG2
| IGN fuse
|
L16-22
| CANL
| CAN communication line
|
L16-23*
| PAON
| Passenger seat belt warning light assembly (Passenger airbag ON/OFF indicator)
|
L16-25
| E1
| Ground
|
L16-26
| E2
| Ground
|
L16-27
| -SR
| Front airbag sensor RH
|
L16-28
| -SL
| Front airbag sensor LH
|
L16-29
| +SR
| Front airbag sensor RH
|
L16-30
| +SL
| Front airbag sensor LH
|
R1-1
| PL-
| Front seat outer belt assembly LH (Front pretensioner squib LH)
|
R1-2
| PL+
| Front seat outer belt assembly LH (Front pretensioner squib LH)
|
R1-6
| ICL-
| Curtain shield airbag assembly LH (Curtain shield squib LH)
|
R1-7
| ICL+
| Curtain shield airbag assembly LH (Curtain shield squib LH)
|
R1-8
| BBL+
| Side airbag sensor LH
|
R1-9
| SFL+
| Front seat side airbag assembly LH (Side squib LH)
|
R1-10
| SFL-
| Front seat side airbag assembly LH (Side squib LH)
|
R1-15
| BBL-
| Side airbag sensor LH
|
S1-4
| PR+
| Front seat outer belt assembly RH (Front pretensioner squib RH)
|
S1-5
| PR-
| Front seat outer belt assembly RH (Front pretensioner squib RH)
|
S1-6
| SFR-
| Front seat side airbag assembly RH (Side squib RH)
|
S1-7
| SFR+
| Front seat side airbag assembly RH (Side squib RH)
|
S1-8
| BBR+
| Side airbag sensor RH
|
S1-9
| ICR+
| Curtain shield airbag assembly RH (Curtain shield squib RH)
|
S1-10
| ICR-
| Curtain shield airbag assembly RH (Curtain shield squib RH)
|
S1-11
| BBR-
| Side airbag sensor RH
|
