HOOD > ON-VEHICLE INSPECTION

for Preparation Click here



1. INSPECT HOOD SUB-ASSEMBLY

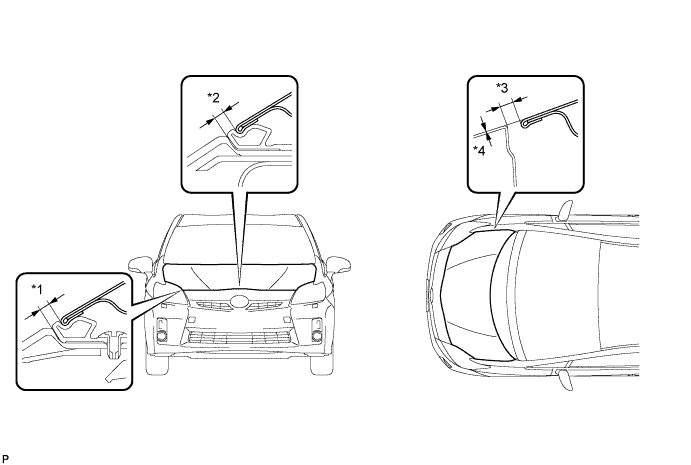

  1. Check that the clearance measurements of areas *1 through *4 are within each standard range.


    B227892E01


    Standard Clearance
    Area
    		Measurement
    		Area
    		Measurement
    *1
    		2.0 to 6.0 mm (0.0787 to 0.236 in.)
    		*2
    		2.0 to 6.0 mm (0.0787 to 0.236 in.)
    *3
    		2.5 to 5.5 mm (0.0984 to 0.217 in.)
    		*4
    		-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
