SUB RADIATOR > REMOVAL

for Preparation Click here



1. REMOVE CONDENSER WITH RECEIVER ASSEMBLY

HINT:
Click here.



2. REMOVE RADIATOR ASSEMBLY

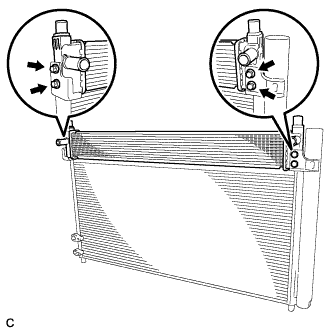

    A209678

  1. Remove the 4 bolts and radiator assembly from the condenser assembly.
