1. INSPECT POWER SWITCH


  1. Measure the resistance according to the value(s) in the table below.

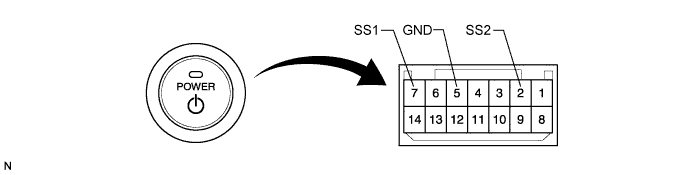

    B138024E09

    Standard Resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition
    7 (SS1) - 5 (GND)
    		Pushed
    		Below 1 Ω
    2 (SS2) - 5 (GND)
    		Pushed
    		Below 1 Ω
    7 (SS1) - 5 (GND)
    		Not pushed
    		10 kΩ or higher
    2 (SS2) - 5 (GND)
    		Not pushed
    		10 kΩ or higher

    If the result is not as specified, replace the power switch.



  1. Apply battery voltage between the terminals of the switch, and check the illumination condition of the power switch.

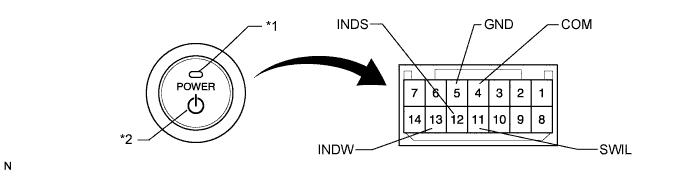

    B138024E08


    Text in Illustration
    *1
    		Indicator Light
    		*2
    		Power Switch Illumination

    Standard Resistance:
    Measurement Condition
    		Specified Condition
    Battery positive (+) →Terminal 11 (SWIL)
    Battery negative (-) →Terminal 4 (COM) or 5 (GND)
    		Illuminates
    (Power Switch Illumination)
    Battery positive (+) →Terminal 12 (INDS)
    Battery negative (-) →Terminal 4 (COM) or 5 (GND)
    		Illuminates
    (Indicator Light)
    Battery positive (+) →Terminal 13 (INDW)
    Battery negative (-) →Terminal 4 (COM) or 5 (GND)
    		Illuminates
    (Indicator Light)

    If the result is not as specified, replace the power switch.
