BATTERY BLOWER > INSTALLATION

for Preparation Click here



1. INSTALL BATTERY COOLING BLOWER ASSEMBLY

NOTICE:
  1. Be sure not to touch the fan part of the battery cooling blower assemblies.
  2. Do not lift the battery cooling blower assemblies using the wire harness.

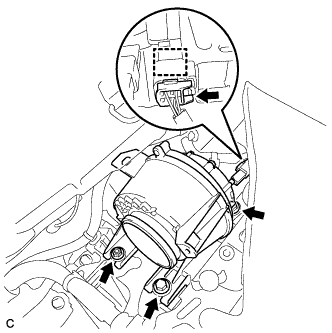

    A215046

  1. Install the battery cooling blower assembly with the 2 bolts and nut.

    Torque:
    7.5 N*m{ 76 kgf*cm , 66 in.*lbf }

  1. Connect each battery cooling blower assembly connector and clamp.

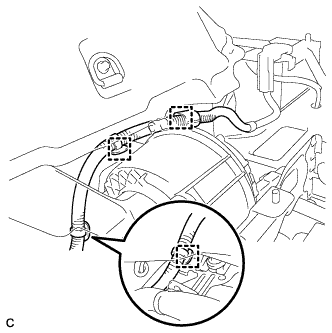

    A215040

  1. Connect the 3 wire harness clamps.



2. INSTALL NO. 1 HYBRID BATTERY INTAKE DUCT

NOTICE:
Ensure that the duct is installed securely.



    A215045

  1. Install the No. 1 hybrid battery intake duct with the 2 clips.



3. INSTALL REAR SIDE SEAT BACK ASSEMBLY RH

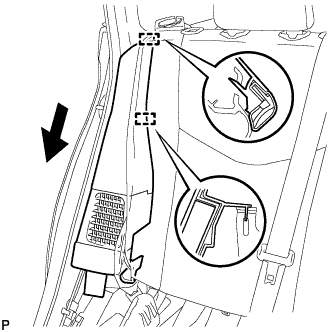

    B230046

  1. Engage the 2 guides as shown in the illustration.

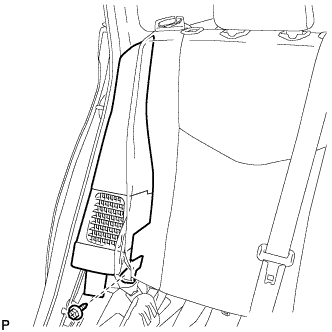

    B230044

  1. Install the rear side seatback assembly RH with the bolt.

    Torque:
    18 N*m{ 184 kgf*cm , 13 ft.*lbf }



4. INSTALL REAR DOOR SCUFF PLATE RH

HINT:
Use the same procedure described for the LH side (Click here).



5. INSTALL NO. 1 HYBRID BATTERY EXHAUST DUCT

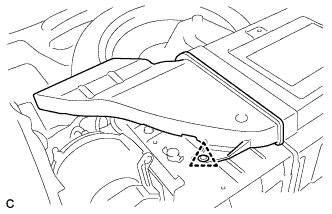

    A215037

  1. Insert the No. 1 hybrid battery exhaust duct with the clip.

    NOTICE:
    Ensure that the duct is installed securely.



6. INSTALL REAR FLOOR BOARD SPACER


    A214691

  1. Install the rear floor board spacer with the 2 clips.



7. INSTALL REAR NO. 1 FLOOR BOARD


    B227794

  1. Engage the 2 claws and 2 clips.

  1. Install the rear No. 1 floor board with the bolt.



8. INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY


    B227793

  1. Engage the claw and 2 clips to install the rear No. 2 floor board sub-assembly.



9. INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY


    B227792

  1. Engage the 2 claws and 2 clips to install the rear No. 1 floor board sub-assembly.



10. INSTALL REAR SEAT CUSHION ASSEMBLY

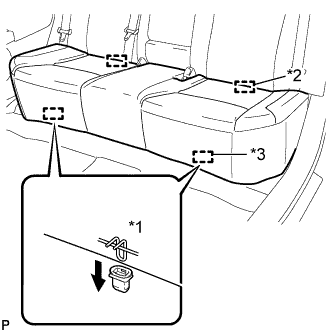

    B229993E01

  1. Engage the 2 guides of the seat cushion to the seatback.
    Text in Illustration
    *1
    		100 mm (3.94 in.) or less
    *2
    		Guide
    *3
    		Hook

  1. Engage the 2 front hooks of the seat cushion to the vehicle body.

    NOTICE:
    When installing the seat cushion, make sure that the seat belt buckle is not under the seat cushion.

    HINT:
    Confirm that the seat cushion is firmly installed.
