DYNAMIC RADAR CRUISE CONTROL SYSTEM > FAIL-SAFE CHART

for Preparation Click here



Constant speed control mode and vehicle-to-vehicle distance control mode:
If the following conditions are detected while the dynamic radar cruise control system is operating, the system clears the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation.

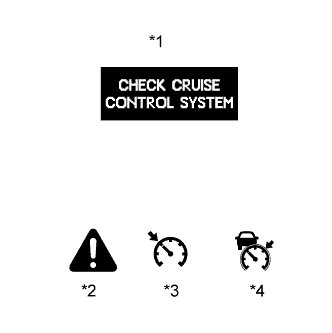

A217219E01

HINT:
During constant speed control mode, the cruise main indicator light (constant speed control mode) flashes. During vehicle-to-vehicle distance control, the cruise main indicator light (vehicle-to-vehicle distance control mode) flashes.

Text in Illustration
*1
Multi-information Display
*2
Master Warning Light
*3
Cruise Main Indicator Light
(Constant speed control mode)
*4
Cruise Main Indicator Light
(Vehicle-to-vehicle distance control mode)

Vehicle Condition
Auto Cancel Condition
Fail-safe Deactivation Condition
  1. Cruise main indicator light blinks
  2. Master warning light comes on
  3. "CHECK CRUISE SYSTEM" is displayed
  4. "Pong" warning sound is heard
Millimeter wave radar sensor or driving support ECU country specification information malfunction
Turn cruise control main switch (ON-OFF button) on again

Vehicle-to-vehicle distance control mode:
If the following conditions are detected while the dynamic radar cruise control system is operating, the system clears the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation.

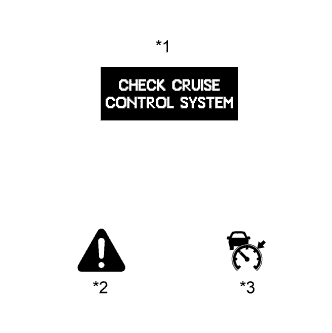

A217221E01
Text in Illustration
*1
Multi-information Display
*2
Master Warning Light
*3
Cruise Main Indicator Light
(Vehicle-to-vehicle distance control mode)

Vehicle Condition
Auto Cancel Condition
Fail-safe Deactivation Condition
  1. Cruise main indicator light blinks
  2. Master warning light comes on
  3. "CHECK CRUISE SYSTEM" is displayed
  4. "Pong" warning sound is heard
  1. Open or short in stop light switch circuit
  2. Problem with vehicle speed signal
  3. There is problem with millimeter wave radar sensor
  4. Beam axis of millimeter wave radar sensor deviates
  5. Other than condition above dynamic radar cruise control system malfunction
  6. Malfunction in the hybrid vehicle control system
Power switch on (IG) again

Vehicle-to-vehicle distance control mode:
If the following conditions are detected while the dynamic radar cruise control system is operating, the system maintains the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation.

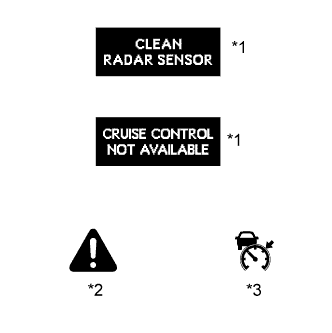

A217222E01
Text in Illustration
*1
Multi-information Display
*2
Master Warning Light
*3
Cruise Main Indicator Light
(Vehicle-to-vehicle distance control mode)

Vehicle Condition
Auto Cancel Condition
Fail-safe Deactivation Condition
  1. Master warning light comes on
  2. Cruise main indicator light blinks
  3. "CLEAN RADAR SENSOR" is displayed
  4. "Pong" warning sound is heard
There is dirt on millimeter wave radar sensor
Recover from condition on left (RESUME operation is possible after recovery)
  1. Cruise main indicator light blinks
  2. Master warning light comes on
  3. "CRUISE NOT AVAILABLE" is displayed
  4. "Pong" warning sound is heard
  1. Wiper switch is in HI position
  2. Millimeter wave radar sensor is least sensitive because of bad weather such as rain, fog, snow, and sandstorms
  1. Recover from condition on left (RESUME operation is possible after recovery)
  2. Turn cruise control main switch on again

Constant speed control mode and vehicle-to-vehicle distance control mode:
If the following conditions are detected while the dynamic radar cruise control system is operating, the system clears the stored vehicle speed and cancels the dynamic radar cruise control operation.

Vehicle Condition
Auto Cancel Condition
Fail-safe Deactivation Condition
Cruise main indicator light goes off
  1. Vehicle speed is lower than low speed limit (approximately 40 km/h (25 mph)) while cruise control is operating
  2. Constant Speed Control Mode:
    Vehicle speed is lower than stored vehicle speed by 16 km/h (10 mph) or more while cruise control is operating
Push the cruise control main switch to + RES
