FRONT AIRBAG SENSOR > REMOVAL

for Preparation Click here


HINT:
  1. Use the same procedure for the RH side and LH side.
  2. The procedure listed below is for the LH side.



1. PRECAUTION

CAUTION:
Be sure to read Precaution thoroughly before servicing (Click here).

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Click here).



2. REMOVE REAR NO. 2 FLOOR BOARD


    B227787E01

  1. Disengage the 2 guides <A> as shown in the illustration.

  1. Disengage the 3 guides <B> and remove the rear No. 2 floor board.



3. REMOVE REAR DECK FLOOR BOX

  1. Remove the rear deck floor box.



4. REMOVE REAR NO. 3 FLOOR BOARD


    B227791

  1. Disengage the 2 guides and remove the rear No. 3 floor board.



5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



6. REMOVE FRONT BUMPER ASSEMBLY

HINT:
Refer to the procedure up to Remove Front Bumper Assembly (Click here).



7. REMOVE FRONT AIRBAG SENSOR

  1. Check that the power switch is off.

  1. Check that the cable is disconnected from the negative (-) battery terminal.

    CAUTION:
    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



    B228022

  1. Disconnect the connector from the front airbag sensor.

    NOTICE:
    When disconnecting any airbag connector, take care not to damage the airbag wire harness.




    1. Push down the white housing lock and slide the yellow CPA. (At this time, the connector cannot be disconnected yet.)


      H043302E10

    2. Push down the white housing lock again and disconnect the connector.

      NOTICE:
      Do not push down the part (A) shown in the illustration when disconnecting.



    3. After disconnecting the connector, check that the position of the white housing lock is correct as shown in the illustration.


      H043303E02

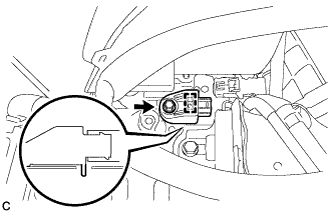

    B228023

  1. Remove the bolt and front airbag sensor.

    NOTICE:
    Loosen the bolt while holding the front airbag sensor because the front airbag sensor pin (stopper) is easily damaged.
