SIDE AIRBAG SENSOR > INSTALLATION

for Preparation Click here


HINT:
  1. Use the same procedure for the RH side and LH side.
  2. The procedure listed below is for the LH side.



1. INSTALL SIDE AIRBAG SENSOR

  1. Check that the power switch is off.

  1. Check that the cable is disconnected from the negative (-) battery terminal.

    CAUTION:
    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

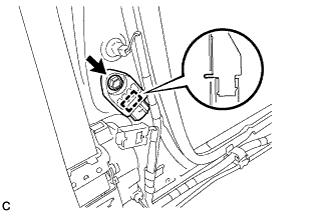

    B231032

  1. Insert the pin (stopper) into the body hole to install the side airbag sensor to the vehicle with the bolt.

    Torque:
    9.0 N*m{ 92 kgf*cm , 80 in.*lbf }

    NOTICE:
    1. If the side airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
    2. When installing the side airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
    3. Make sure that the pin (stopper) is securely inserted into the body hole.
    4. Tighten the bolt while holding the side airbag sensor because the side airbag sensor pin (stopper) is easily damaged.

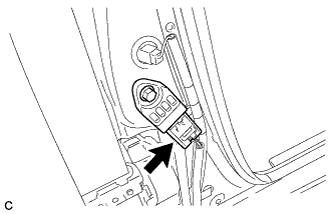

    B231031

  1. Connect the connector to the side airbag sensor.

    NOTICE:
    When connecting any airbag connector, take care not to damage the airbag wire harness.




    1. Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).

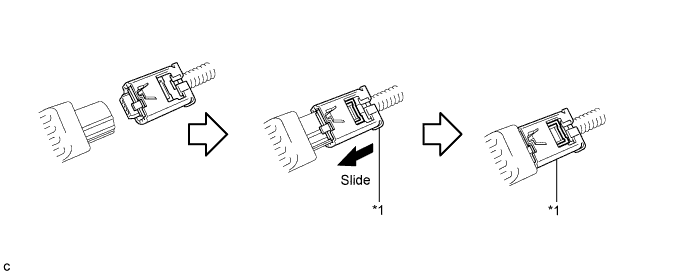

      C198070E02


      Text in Illustration
      *1
      		Outer Connector Locking Sleeve
      		-
      		-

      HINT:
      When connected, the outer connector locking sleeve will slide. Be sure not to hold the outer connector locking sleeve while connecting, as it may result in an insecure fit.

  1. Check that there is no looseness in the installation parts of the side airbag sensor.



2. INSTALL CENTER PILLAR LOWER GARNISH


    B227782

  1. Engage the 2 claws and 2 clips to install the center pillar lower garnish LH.



3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP


4. INSTALL REAR DOOR SCUFF PLATE


    B227766

  1. Engage the 7 claws to install the rear door scuff plate LH.



5. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP


6. INSTALL FRONT DOOR SCUFF PLATE


    B227761

  1. Engage the 10 claws to install the front door scuff plate LH.



7. INSTALL REAR NO. 3 FLOOR BOARD


    B227791

  1. Engage the 2 guides to install the rear No. 3 floor board.



8. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



9. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01

  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.



10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



11. PERFORM DIAGNOSTIC SYSTEM CHECK

  1. Perform a diagnostic system check (Click here).



12. INSPECT SRS WARNING LIGHT

  1. Inspect the SRS warning light (Click here).
