FRONT WIPER MOTOR > ON-VEHICLE INSPECTION

for Preparation Click here



1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

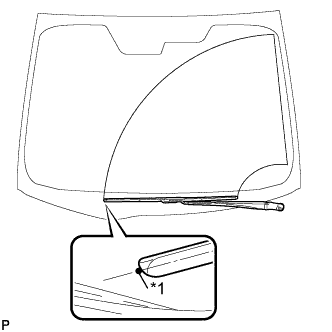

  1. for LH Side



      E189304E01

    1. Operate the windshield wiper motor assembly.

    2. Stop the windshield wiper motor assembly operation.

    3. Check the automatic stop (park) position.

      OK:
      The front wiper stops at the position shown in the illustration.

      Text in Illustration
      *1
      		Ceramic Dot

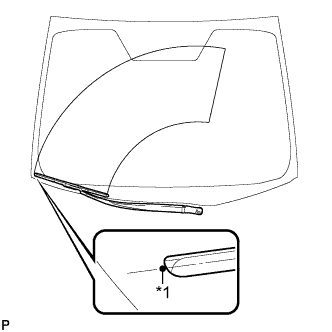

  1. for RH Side



      E189301E01

    1. Operate the windshield wiper motor assembly.

    2. Stop the windshield wiper motor assembly operation.

    3. Check the automatic stop (park) position.

      OK:
      The front wiper stops at the position shown in the illustration.

      Text in Illustration
      *1
      		Ceramic Dot
