NAVIGATION SYSTEM (for DVD) > Voice is not Recognized

for Preparation Click here


INSPECTION PROCEDURE

1.CHECK NAVIGATION SETTINGS

  1. Display the "Voice Settings" or "Setup" screen.



    E196066E02

  1. Check that "Voice Recognition Guidance" is not "Off" or "OFF".

    OK:
    "Voice Recognition Guidance" is not "Off" or "OFF".

Text in Illustration
*A
for LHD
*B
for RHD
*1
Example


NG
TURN VOICE RECOGNITION GUIDANCE "On" OR "ON"
OK


2.CHECK MAP DISC

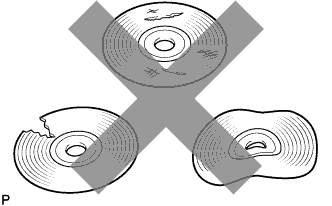

    I100152E12

  1. Check that the map disc is not deformed or cracked.

    OK:
    No deformations or cracks on the map disc



NG
REPLACE MAP DISC
OK


3.CHECK MAP DISC


    I100201E04

  1. Check for dirt on the map disc surface.

    OK:
    No dirt is on the map disc surface.

    NOTICE:
    Do not use a conventional record cleaner or anti-static preservative.

    HINT:

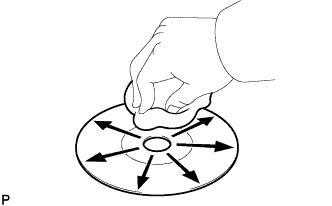

    If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.



NG
CLEAN MAP DISC
OK


4.CHECK MICROPHONE AND VOICE RECOGNITION (OPERATION CHECK)

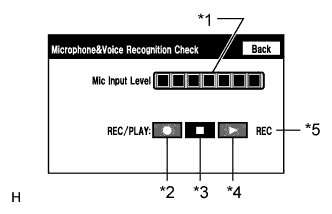

    E187218E01

  1. Enter the "Microphone & Voice Recognition Check" screen. Refer to Check Mic & Voice Recognition in Operation Check (Click here).

  1. When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.

  1. Push the recording switch and perform voice recording.

    HINT:
    Voice can be recorded up to 5 seconds.

  1. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.

    OK:
    All check results are normal.

Text in Illustration
*1
Microphone Input Level Meter
*2
Recording Switch
*3
Stop Switch
*4
Play Switch
*5
Recording Indicator


NG
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE (Click here)
OK

REPLACE NAVIGATION RECEIVER ASSEMBLY (Click here)
