LIGHTING SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

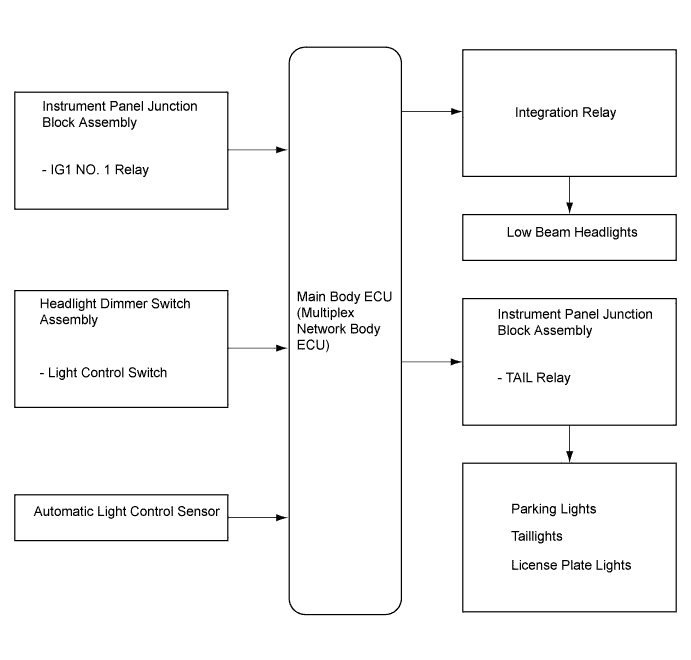

AUTOMATIC LIGHT CONTROL SYSTEM

E190906E02

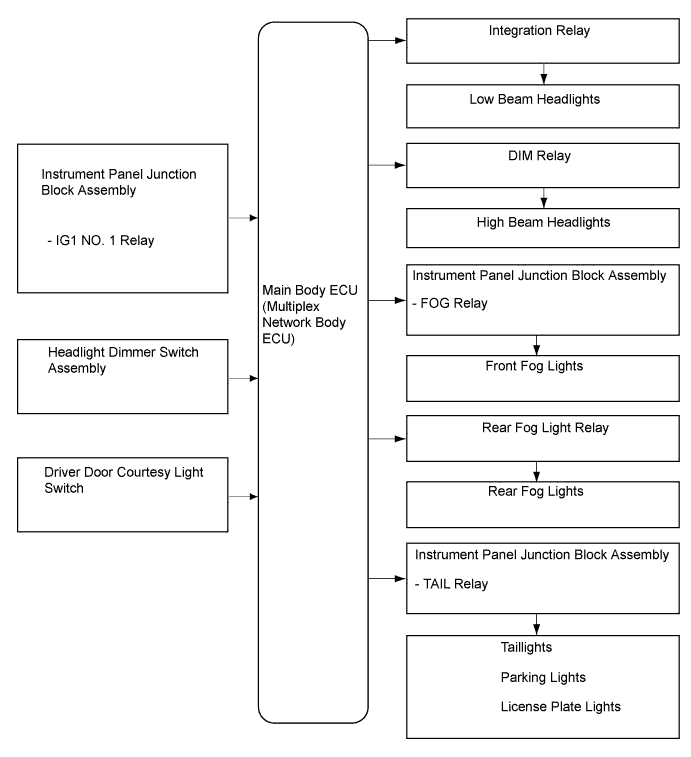

LIGHT AUTO TURN-OFF SYSTEM

E191592E01

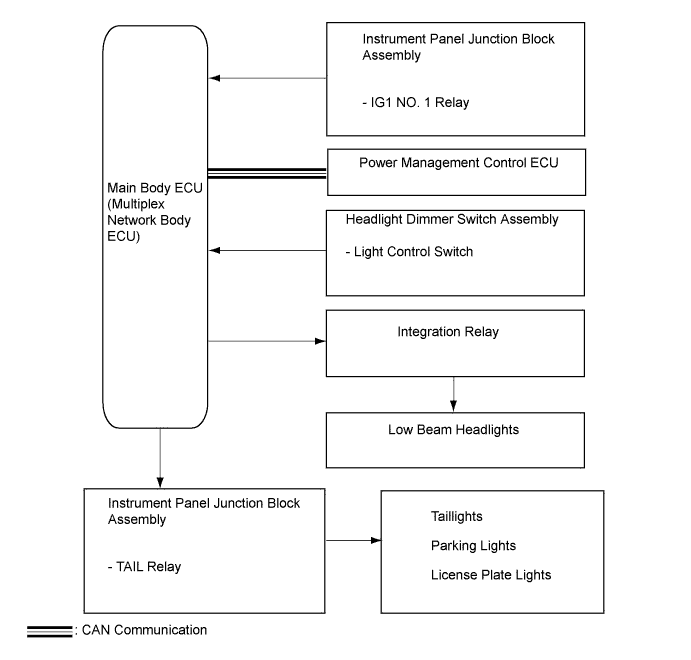

DAYTIME RUNNING LIGHT SYSTEM

E191593E01


Communication Table
Transmitter
Receiver
Line
Data Name
Power Management Control ECU
Main Body ECU (Multiplex Network Body ECU)
CAN
READY condition signal

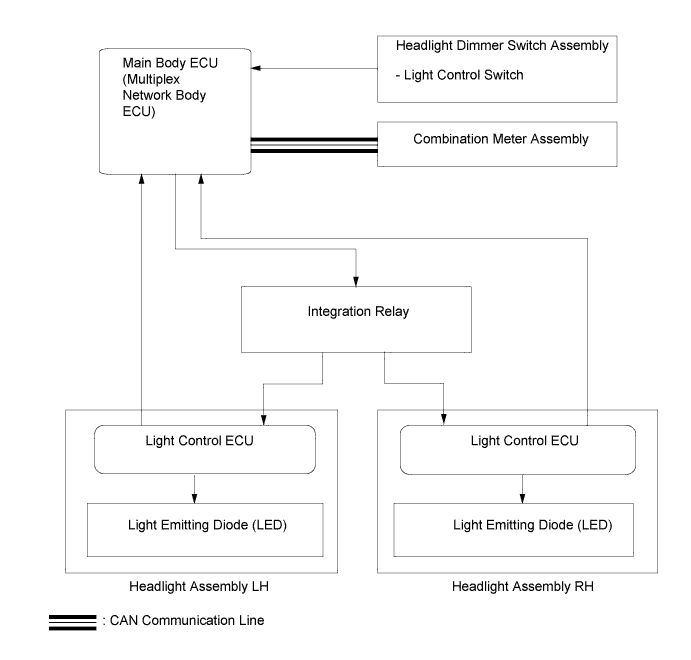

LED HEADLIGHT SYSTEM

E191297E01


Communication Table
Transmitter
Receiver
Line
Data Name
Main Body ECU (Multiplex Network Body ECU)
Combination Meter Assembly
CAN
Lighting System State Signal
Main Body ECU (Multiplex Network Body ECU)
Combination Meter Assembly
CAN
Warning Indicator

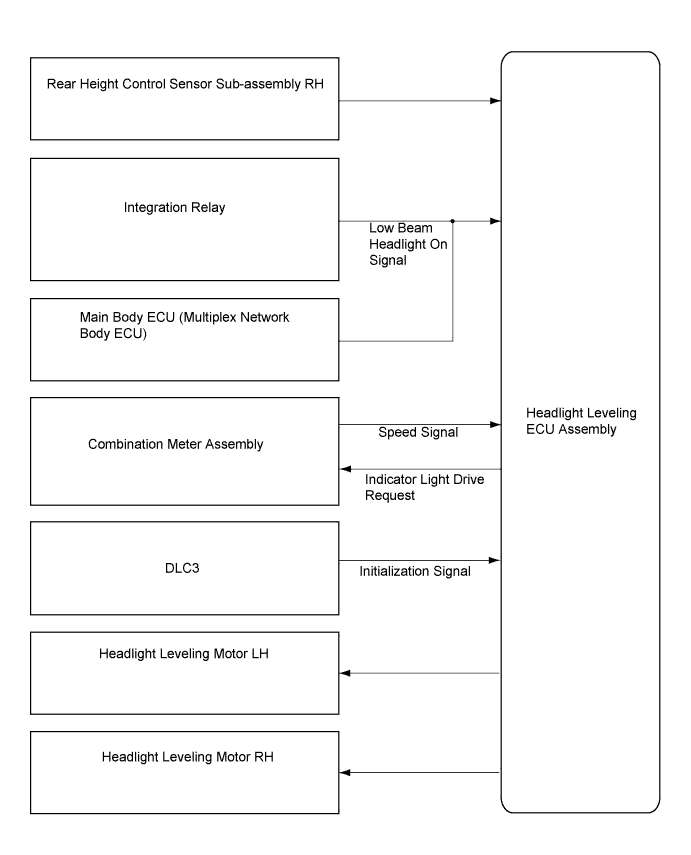

AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM

E176867E02
