SFI SYSTEM (w/o EGR System) > FREEZE FRAME DATA

for Preparation Click here



DESCRIPTION
  1. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

    HINT:
    If it is impossible to replicate the problem even though a DTC is detected, confirm the freeze frame data.


  1. A103809E56

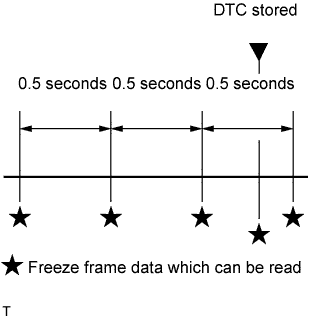

    The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using the intelligent tester, 5 separate sets of freeze frame data can be checked.
    1. 3 data sets before the DTC was stored.
    2. 1 data set when the DTC was stored.
    3. 1 data set after the DTC was stored.
    1. These data sets can be used to simulate the condition of the vehicle around the time of the occurrence the malfunction. The data may assist in identifying the cause of the malfunction, and judging whether it was temporary or not.

PENDING FREEZE FRAME DATA

HINT:
Pending freeze frame data is stored when a 2 trip DTC is first detected during the first trip.

  1. Connect the intelligent tester to the DLC3.

  2. Turn the power switch on (IG).

  3. Turn the tester on.

  4. Enter the following menus: Powertrain / Engine and ECT / DTC.



  5. Select a DTC in order to display its pending freeze frame data.

    HINT:
    1. Pending freeze frame data is cleared when any of the following occurs.
      1. Using the intelligent tester, the DTCs cleared.
      1. The cable is disconnected from the negative (-) auxiliary battery terminal.
      1. 40 trips with the engine fully warmed up have been performed after returning to normal. (Pending freeze frame data will not be cleared by only returning the system to normal.)
    2. With previous pending freeze frame data stored, if pending freeze frame data is newly stored when a 2 trip DTC is detected in the first trip, the old freeze frame data will be replaced with the new one of the newly detected DTC in the next trip.

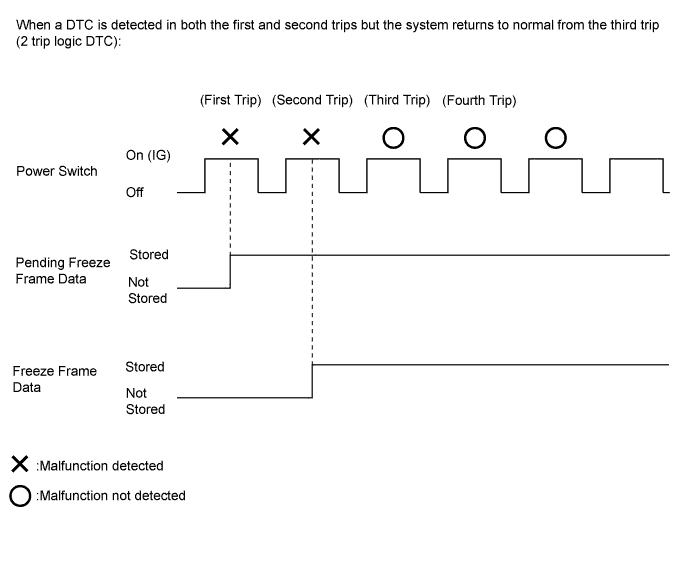

    A251781E01

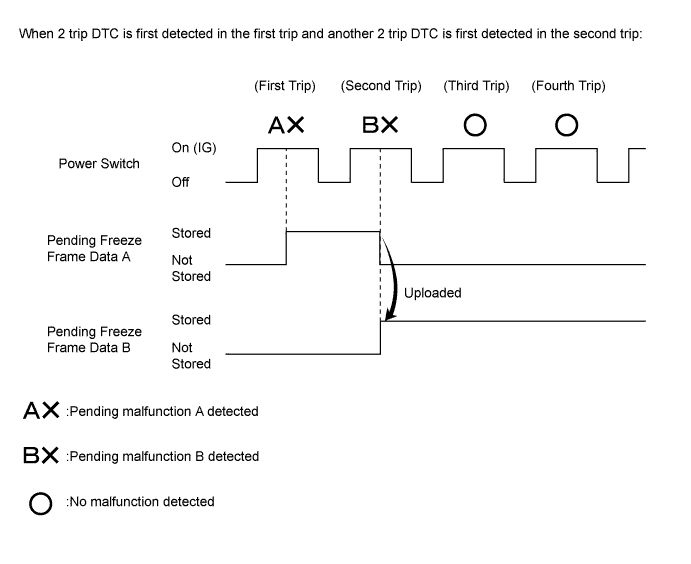

    A251782E02


LIST OF FREEZE FRAME DATA

Tester Display
Measurement Item
Diagnostic Note
Vehicle Speed
Vehicle speed
Speed indicated on speedometer
Engine Speed
Engine speed
-
Calculate Load
Calculated load by ECM
-
Vehicle Load
Vehicle load
Load percentage in terms of maximum intake air flow amount
MAF
Air flow rate from mass air flow meter sub-assembly
If value approximately 0.0 gm/sec:
  1. Mass air flow meter sub-assembly power source circuit open
  2. VG circuit open or short
If value 271.0 gm/sec or more:
  1. E2G circuit open
Atmosphere Pressure
Atmosphere pressure
-
MAP
Intake manifold pressure
-
Coolant Temp
Engine coolant temperature
  1. If value -40°C (-40°F): sensor circuit open
  2. If value 140°C (284°F): sensor circuit shorted
Intake Air
Intake air temperature
  1. If value -40°C (-40°F): sensor circuit open
  2. If value 140°C (284°F): sensor circuit shorted
Engine Run Time
Engine run time
-
Initial Engine Coolant Temp
Initial engine coolant temperature
-
Initial Intake Air Temp
Initial intake air temperature
-
Battery Voltage
Auxiliary battery voltage
-
Throttle Sensor Volt %
Throttle sensor positioning
Recognition value for throttle opening angle on ECM
Throttl Sensor #2 Volt %
Absolute throttle sensor positioning #2
Recognition value for throttle opening angle on ECM
Throttle Sensor Position
Throttle sensor positioning
Recognition value for throttle opening angle on ECM
Throttle Motor DUTY
Throttle actuator
-
Injector (Port)
Injection period of No. 1 cylinder
-
Injection Volum (Cylinder1)
Injection volume (Cylinder 1)
Quantity of fuel injection volume for 10 times
Fuel Pump/Speed Status
Fuel pump/status
-
EVAP (Purge) VSV
Purge VSV control duty
Order signal from ECM
Evap Purge Flow
Ratio of evaporative purge flow to intake air volume
-
Purge Density Learn Value
Learning value of purge density
-
EVAP Purge VSV
VSV status for EVAP control
-
Purge Cut VSV Duty
Purge VSV duty
-
Target Air-Fuel Ratio
Ratio compared to stoichiometric level
-
AF Lambda B1S1
Short-term fuel trim associated with bank 1 sensor 1
-
AFS Voltage B1S1
Air fuel ratio sensor output voltage for bank 1 sensor 1
-
AFS Current B1S1
Air fuel ratio sensor output current for bank 1 sensor 1
Value becomes higher when fuel-cut executed under high engine speed
A/F Heater Duty #1
Air fuel ratio sensor heater duty ratio for bank 1
-
O2S B1S2
Heated oxygen sensor output voltage for bank 1 sensor 2
-
O2 Heater B1S2
Heated oxygen sensor operation
-
O2 Heater Curr Val B1S2
Heated oxygen sensor current
-
Short FT #1
Short-term fuel trim of bank 1
Short-term fuel compensation used to maintain air fuel ratio at stoichiometric air fuel ratio
Long FT #1
Long-term fuel trim of bank 1
Overall fuel compensation carried out in long-term to compensate continual deviation of short-term fuel trim from central value
Total FT #1
Total fuel trim
-
Fuel System Status #1
Fuel system status (bank 1)
  1. OL (Open Loop): Has not yet satisfied conditions to go closed loop
  2. CL (Closed Loop): Using air fuel ratio sensor as feedback for fuel control
  3. OLDrive: Open loop due to driving conditions (fuel enrichment)
  4. OLFault: Open loop due to detected system fault
  5. CLFault: Closed loop but air fuel ratio sensor, which is used for fuel control, malfunctioning
Fuel System Status #2
Fuel system status (bank 2) (Unused)
-
IGN Advance
Ignition timing advance for cylinder 1
-
Knock Feedback Value
Feedback value of knocking
-
Knock Correct Learn Value
Correction learning value of knocking
-
Actual VVT Angle #1
Actual VVT Angle (bank 1)
-
VVT Control Status #1
VVT control (bank 1) status
-
Catalyst Temp B1S1
Catalyst temperature (associated sensor 1)
-
Catalyst Temp B1S2
Catalyst temperature (associated sensor 2)
-
Closed Throttle Position SW
Closed throttle position switch
-
Fuel Cut Condition
Fuel cut condition ON or OFF
-
TC Terminal
TC terminal status
-
Time after DTC Cleared
Time after DTCs cleared
-
Distance from DTC Cleared
Distance traveled after DTCs cleared
-
Warmup Cycle Cleared DTC
Warm-up cycles after DTCs cleared
Number of warm-up cycles after DTCs cleared
Dist Batt Cable Disconnect
Accumulated distance from auxiliary battery cable disconnected
-
TC and TE1
TC and CG (TE1) terminals of DLC3
-
Ignition Trig. Count
Ignition counter to calculated misfire count
-
Cylinder #1 Misfire Count
Misfire count for cylinder 1
-
Cylinder #2 Misfire Count
Misfire count for cylinder 2
-
Cylinder #3 Misfire Count
Misfire count for cylinder 3
-
Cylinder #4 Misfire Count
Misfire count for cylinder 4
-
All Cylinders Misfire Count
All cylinders misfire count
-
Misfire RPM
Average engine speed when misfire occurs
-
Misfire Load
Average engine load when misfire occurred
-
Misfire Margin
Misfire monitoring
-
A/F Learn Value Idle #1
Idle area of air fuel ratio learn value
-
A/F Learn Value Low #1
Low load area of air fuel ratio learn value
-
A/F Learn Value Mid1 #1
Middle 1 load area of air fuel ratio learn value
-
A/F Learn Value Mid2 #1
Middle 2 load area of air fuel ratio learn value
-
A/F Learn Value High #1
High load area of air fuel ratio learn value
-
Electric Fan Motor
Electric cooling fan motor
-
Idle Fuel Cut
Fuel cut idle
Idle Fuel Cut = "ON" when the throttle valve is fully closed and the engine speed is high.
FC TAU
FC TAU
This is the fuel cut performed under a very light load to prevent the engine combustion from becoming incomplete.
Communication with HV
Status of the communication with power management control ECU
-
Communication with Brake
Status of the communication with skid control ECU
-
Comm with Air Conditioner
Status of the communication with air conditioning amplifier assembly
-
Sports Mode Switch
Pattern select switch
-
Requested Engine Torque
Requested engine torque
Flag information for hybrid vehicle
HV Target Engine Speed
HV target engine speed
Flag information for hybrid vehicle
Actual Engine Torque
Actual engine torque
Flag information for hybrid vehicle
Engine Run Time
Engine run time
Flag information for hybrid vehicle
Request Engine Run Time
Request engine run time
Flag information for hybrid vehicle
Judge Time Engine Ignition
Judgment time engine ignition
Flag information for hybrid vehicle
Judge Time Engine Output
Judgment time for time until engine output
Flag information for hybrid vehicle
Fuel Level
Fuel level
Flag information for hybrid vehicle
ISC Learning
Idle speed control learning
Flag information for hybrid vehicle
F/C for Engine Stop Req
Fuel cut for engine stop request
Flag information for hybrid vehicle
Engine Independent
Engine independent operation
Flag information for hybrid vehicle
Racing Operation
Racing operation
Flag information for hybrid vehicle
Request Warm-up
Request engine warm up
Flag information for hybrid vehicle
Engine Independent Control
Engine independent control operation
Flag information for hybrid vehicle
Elec Water Pump Target Spd
Engine water pump assembly target speed
-
Elec Water Pump Spd
Engine water pump assembly speed
-
ISC Learning Value
Idle speed control learning value
Flag information for hybrid vehicle
