FRONT SEAT CUSHION HEATER (for Manual Seat) > REMOVAL

for Preparation Click here

NOTICE:

After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal (Click here).

1. Disengage the 2 guides <A> as shown in the illustration.

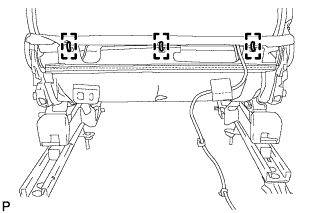

2. Disengage the 3 guides <B> and remove the rear No. 2 floor board.


1. Remove the rear deck floor box.


1. Disengage the 2 guides and remove the rear No. 3 floor board.


CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

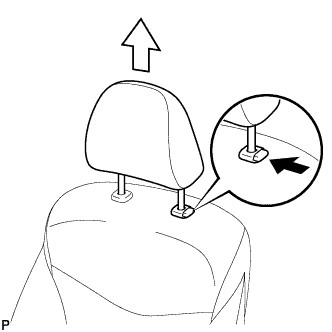

1. Press the headrest support button and pull up the headrest as shown in the illustration to remove it.


1. Lift up the seat track adjusting handle and move the seat to the foremost position.


2. Disengage the 2 claws and remove the outer seat track cover.


1. Disengage the claw.


2. Separate the guide and remove the inner seat track cover.

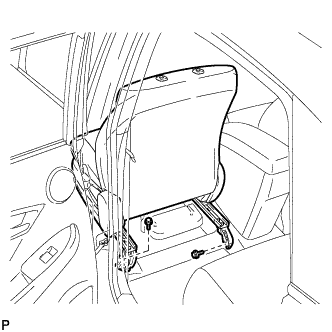

1. Remove the 2 bolts on the rear side of the seat.


2. Lift up the seat track adjusting handle and move the seat to the rearmost position.

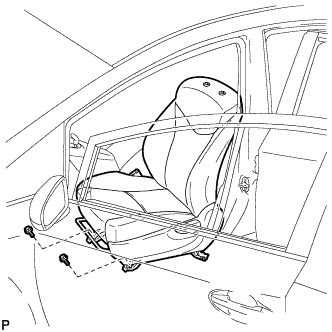

3. Remove the 2 bolts on the front side of the seat.


4. Lift up the seat track adjusting handle and move the seat to the center position. Also, operate the reclining adjuster release handle and move the seatback to the upright position.


5. Disconnect the connectors under the seat.


6. Remove the seat.


   NOTICE:

   Be careful not to damage the vehicle body.

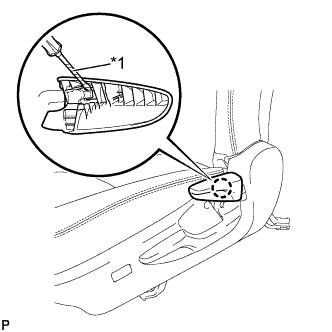

1. Using a screwdriver wrapped with protective tape, disengage the claw and remove the reclining adjuster release handle.


   Text in Illustration

   *1	Protective Tape

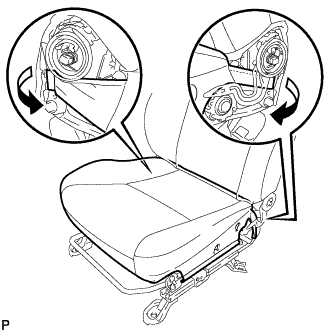

1. Remove the screw and vertical adjusting handle.


1. Remove the screw.


2. Disengage the 2 claws and clip.


3. w/ Lumbar Support:







   1. Disconnect the connector.


   2. Disengage the 5 clamps and remove the front seat cushion shield assembly.


1. Disconnect each connector.


2. Disengage each clamp.

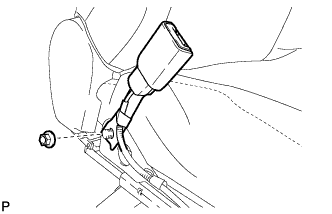

3. Remove the nut and front seat inner belt assembly.


1. Disengage the 2 claws and remove the front seat cushion inner shield.


1. Remove the hook.


2. w/ Lumbar Support:







   1. Disconnect the connector.


   2. Disengage the 3 clamps.






   3. Disengage the 4 clamps.


3. w/ Seat Heater System:







   1. Disconnect the connector.


   2. Unfasten the front seat cushion cover with pad as shown in the illustration.






   3. Disengage the clamp.


4. Disengage the 4 hooks.


5. for Passenger Side:







   1. Disconnect the connector.


   2. Disengage the 3 clamps.






   3. Disengage the guide and remove the belt warning occupant detection sensor.


6. Remove the 3 hog rings.

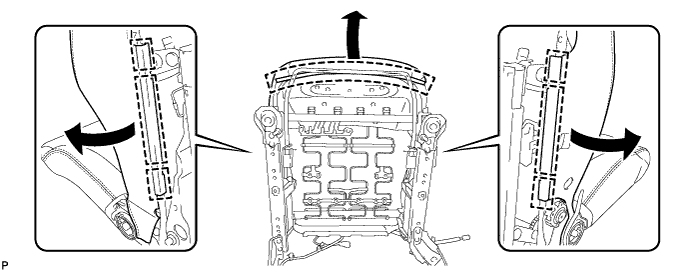

7. Disengage the 2 hooks as shown in the illustration.


8. Disengage each hook and remove the front seat cushion cover with pad as shown in the illustration.








1. Remove the 2 hog rings.


2. Remove the 11 hog rings and the separate type front seat cushion cover.
